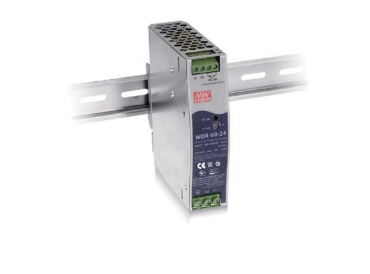

- Intended applications: Industrial DIN module switchmode power supply.
- Classification: Class 1.
- Protection: Short circuit, over voltage and overload & over temperature shut down.
- Construction: TS35 DIN rail (35mm symmetrical) mounting module, IP20
- Input: Two phase 180~550vac L1, L2 & E via terminals
- Output: +ve & -ve via terminals (voltage adjustment range: + 20%)
- Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
- Manufactured standard: ASNZS 60950.1.
- Dimensions: H. 102mm, L. 126mm, W. 32mm, 0.45kg
