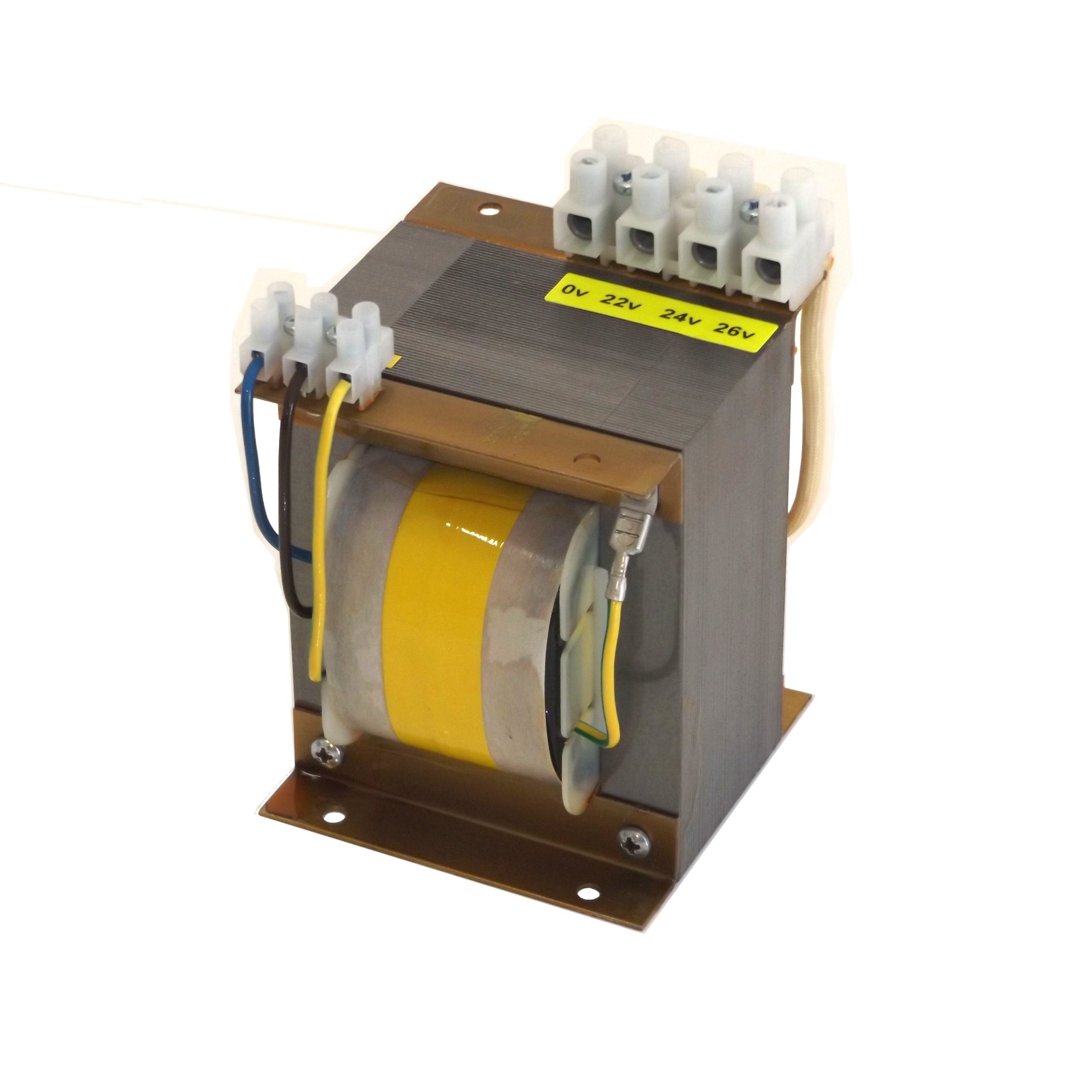

TX safety isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, safety isolating non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Open frame IP00 with Faraday / Electrostatic shield.
  • Connections: Primary input terminals / secondary output terminals.
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.6 (IEC 61558.2.6).
  • Dimensions: h. 145mm, w. 96mm, d. 130mm, 7.8kg
