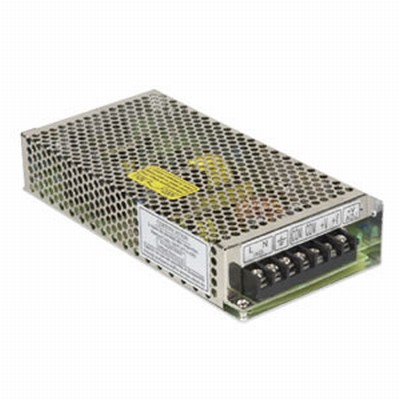

- Intended applications: Industrial open frame switchmode power supply.
- Classification: Class 1.
- Protection: Short circuit, over voltage and overload shut down.
- Construction: Euro vented metal cage, open frame IP00
- Input: Single phase 115vac or 230vac (selectable) L, N & E via terminals.
- Output: +ve & -ve via terminals (voltage adjustment range: +/- 10%)
- Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
- Manufactured standard: ASNZS 60950.1.
- Dimensions: H. 38mm, L. 199mm, W. 98mm, 0.75kg
