- Intended applications: Industrial open frame switchmode converter.
- Classification: Isolating.
- Protection: Short circuit, over voltage and overload shut down.

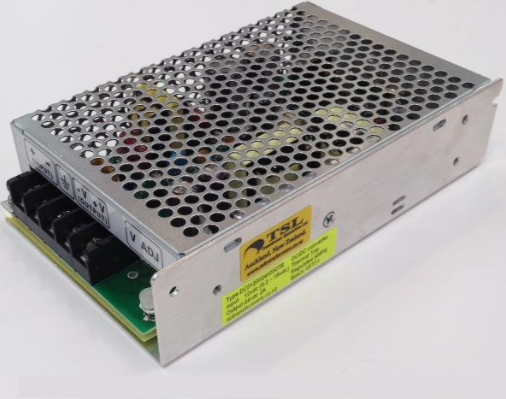

- Construction: Euro vented metal cage, open frame IP00
- Input: 9~18vdc +ve & -ve via terminals.
- Output: +ve & -ve via terminals (voltage adjustment range: 23~30vdc)
- Operating conditions: Rated ambient temp 30 deg C.
- Manufactured standard: LVD (Low Voltage Directive)
- Dimensions: H. 38mm, L. 159mm, W. 97mm, 0.53kg
