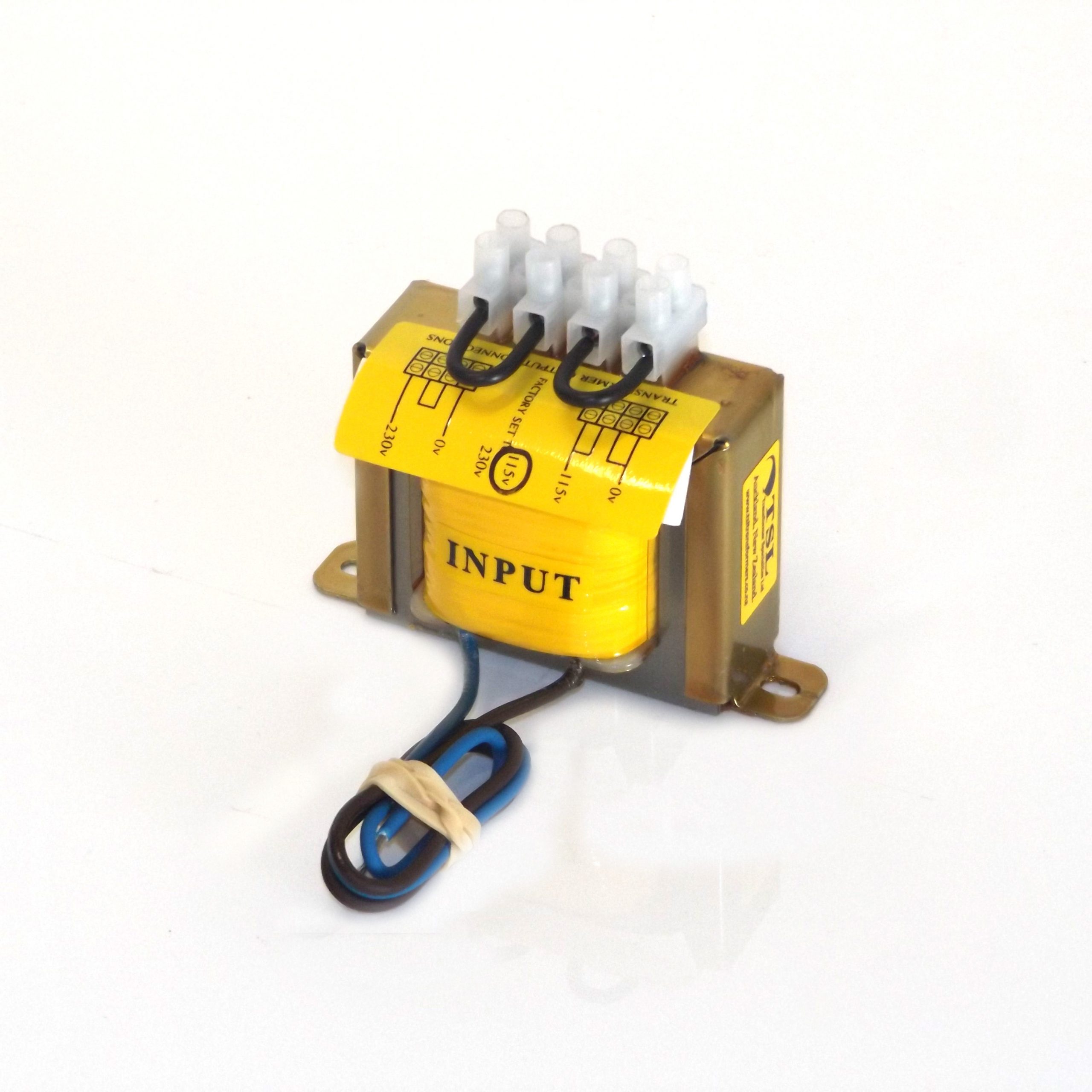

PX isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, isolating non-short circuit proof.
  • Protection: External short-circuit / overload protection required.
  • Construction: Open frame IP00.
  • Connections: Primary input flying leads / secondary terminals.
  • Dual secondary output windings: Parallel 115vac or series 230vac
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
  • Dimensions: h. 70mm, w. 84mm, d. 45mm, 0.4kg
