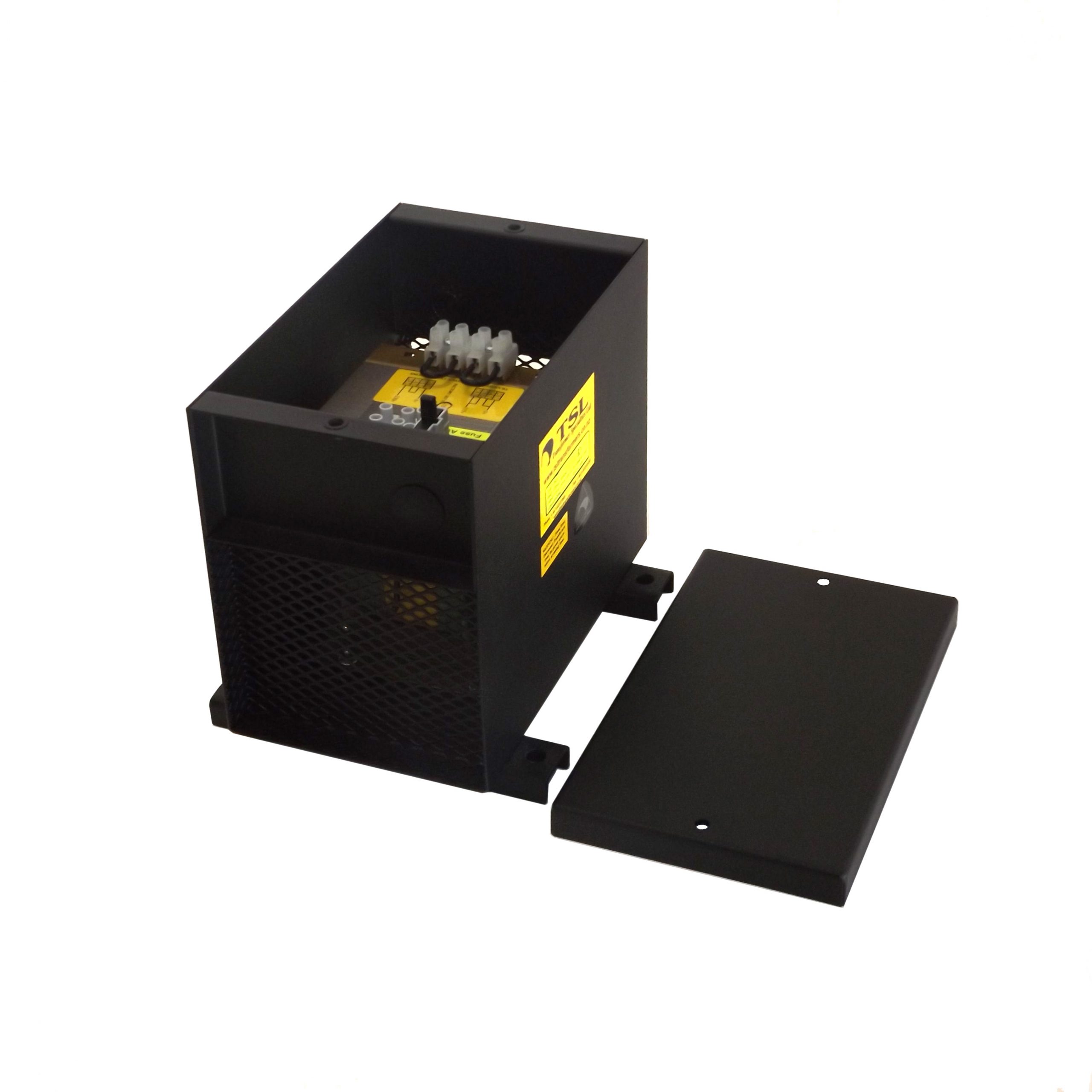

PN isolating

  • Intended applications: Fixed associated control & power transformers.
  • Classification: Class 1, isolating short circuit proof.
  • Protection: Primary fuse fitted T 0.75A (slow blow).
  • Construction: Enclosed metal vented IP40, epoxy powder coated.
  • Connections: Primary input terminals (fused) / secondary output terminals.
  • Dual secondary output windings: Parallel 115vac or series 230vac
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
  • Dimensions: h. 160mm, w. 160mm, d. 200mm, 6.2kg
