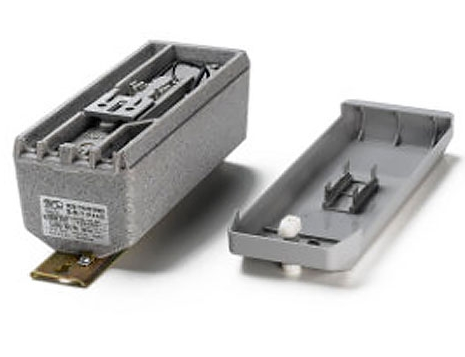

NT150K60MA (230vac/15kvac, 60mA)

NT isolating

  • Intended applications: Fixed HV neon sign transformer.
  • Classification: Class 1, isolating short circuit proof.
  • Protection: Inherently current limiting (short circuit proof).
  • Construction: Resin block IP44.
  • Connections: Primary input terminals / secondary output terminals.
  • Secondary winding 15kvac centre tap earthed (7.5kvac – E – 7.5kvac)
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 61050 (IEC 61050).
  • Dimensions: H. 122mm, L. 355mm, W. 140mm, 15kg

Description

Non stock indent item – Contact [email protected] for pricing and availability

Additional information

Weight 15.00 kg
Dimensions 140 × 355 × 122 mm

SDoC NT150K60MA-2015.pdf
