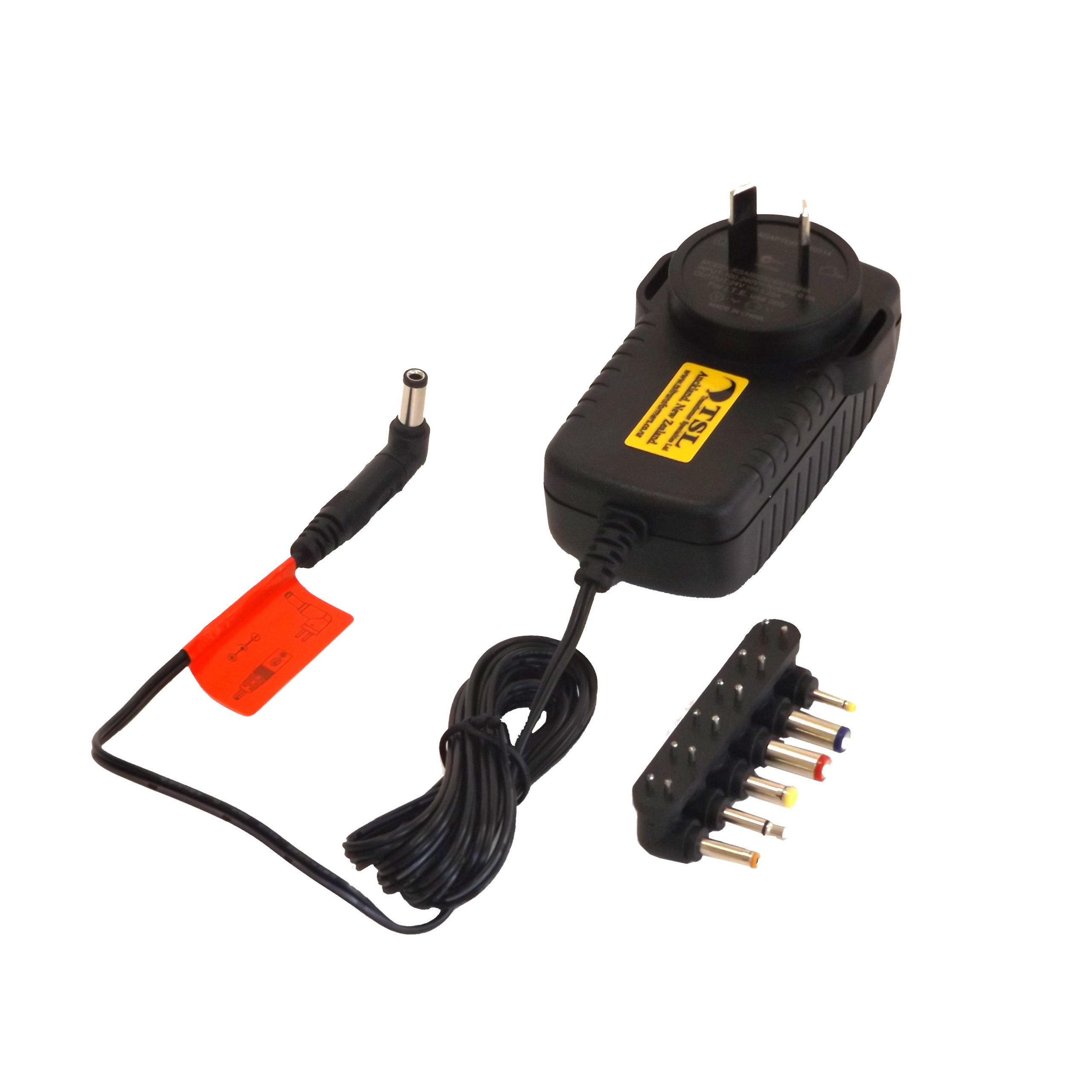

IS ac-dc plugpack

  • Intended applications: Plug-pack switchmode DC power supply.
  • Classification: Class II, safety isolating short circuit proof.
  • Protection: Primary thermal fuse fitted.
  • Construction: Wall mounting plug-pack, ABS plastic IP40
  • Input: NZ / AU standard mains power point connecting.
  • Output: Interchangable ELV plugs including ID 1.3 * OD 3.5mm, ID 1.5 * OD 5.9mm, ID 2.1 * OD 5mm, ID 2.1 * OD 5.5mm, ID 2.5 * OD 5mm. (configerable for center +ve or -ve)
  • Operating conditions: 47~63Hz, rated ambient temp 30 deg C.
  • Manufactured standard: ASNZS 60950.
  • Dimensions: h. 60mm, w. 95mm, d. 60mm, 0.6kg
